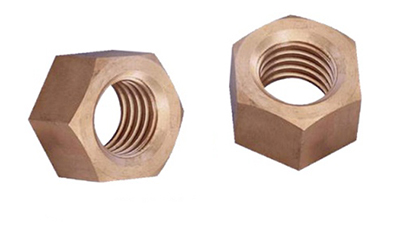

Brass Din 934 Nuts
At Brass Screw Fasteners we produce general purpose hexagonal nut and high quality fastener with metric threading. It is also known as hex nut or non-locking six-sided nut. We use brass material as it is composed of copper and zinc and is popularly used as anti-corrosive material. Brass has nonmagnetic properties and has high electrical conductivity. Common industries include furniture, electrical, digital components, communications and nautical / marine.
Special Order Variation :
Additional Coarse Thread Sizes :
M2, M2.5, M2.6, M16, M18, M20, M22, M27, M30, M33, M42
Nickel Plated Brass, Chrome Plated Brass
Additional Materials:
A2 / 304 Stainless Steel
Class 8 Zinc Plated Steel
Class 8 Black Oxide Coated
Class 10 Zinc Plated Steel
Class 10 Plain Uncoated Steel
Brass Din 934 Nuts
S = Normally Stocked Item * = Contact For Availability

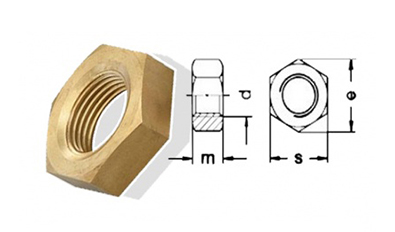

d | s | e | m | con 23 | Order # |
---|---|---|---|---|---|
M2 | 4 | 4.32 | 1.6 | s | CON 23-002-0000 |
M3 | 5.5 | 6.01 | 2.4 | s | CON 23-003-0000 |
M4 | 7 | 7.66 | 3.2 | s | CON 23-004-0000 |
M5 | 8 | 8.79 | 4 | s | CON 23-005-0000 |
M6 | 10 | 11.05 | 5 | s | CON 23-006-0000 |
M8 | 13 | 14.38 | 6.5 | s | CON 23-008-0000 |
M10 | 17 | 18.9 | 8 | s | CON 23-010-0000 |
M12 | 19 | 21.1 | 10 | * | CON 23-012-0000 |
